Grinding Wheel - 300 x150 x 120 GC 60LV (GW141) Jainnher

SPECIFICATIONS

300 x 150 x 120mm 12" x 2 1/2" x 5" (Diameter x Width x Bore) Type 5 Recessed Both sides 175 x 25mm.

MATERIAL COMPOSITION

GC 60LV - Green silicon carbide abrasive.

BRAND

'WEILER'

SAFETY

Speed (MAX) 40m/s, 2580 RPM. Complies with 12413 ANSI B7.1 safety standards for professional grinding wheel applications.

COUNTRY OF ORIGIN

SLOVENIA – Industrial quality grinding wheel suitable for workshop and manufacturing environments.

TYPICAL APPLICATIONS

Centreless grinding. Jainnher etc.

VERSATILITY

Advanced performance high purity silicon carbide - harder than aluminium oxide with its very sharp abrasive grain shape. Recommended for grinding soft and hard materials such as aluminium, cast iron, cemented carbide cutting tools, fired ceramics & glass etc.

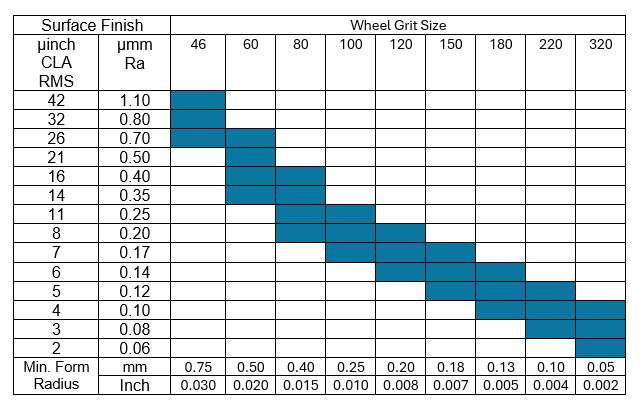

SURFACE FINISH µ (Ra & CLA)

Is dependent on grit size. GRIT SIZE SELECTION GUIDE (guide table attached).

WHEEL MODIFICATION service available. Stocked wheels can be modified at your request.

Please contact the office on: +44 (0)121 687 1135

Library photograph used for illustration purposes.
