Grinding Wheel - 300 x 50 x175 GC 220IV (GW1563)

SPECIFICATIONS

300 x 50 x 175mm (Diameter x Width x Bore) Type 5 Recessed one side 215 x 25mm.

MATERIAL COMPOSITION

GC 220I5V6 - Green silicon carbide abrasive.

BRAND

'CUMI' (CARBORUNDUM UNIVERSAL)

SAFETY

Speed (MAX) 32m/s, 2100 RPM. Complies with 12413 ANSI B7.1 safety standards for professional grinding wheel applications.

COUNTRY OF ORIGIN

INDIA – Industrial quality grinding wheel suitable for workshop and manufacturing environments.

TYPICAL APPLICATIONS

Surface, cylindrical, universal grinding etc.

VERSATILITY

Advanced performance high purity silicon carbide - harder than aluminium oxide with its very sharp abrasive grain shape. Recommended for grinding soft and hard materials such as aluminium, cast iron, cemented carbide cutting tools, fired ceramics & glass etc.

SURFACE FINISH µ (Ra & CLA)

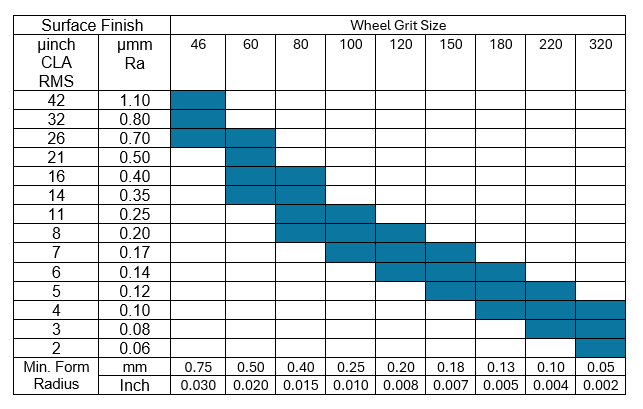

Is dependent on grit size. GRIT SIZE SELECTION GUIDE (guide table attached).

WHEEL MODIFICATION service available. Stocked wheels can be modified at your request.

Please contact the office on: +44 (0)121 687 1135

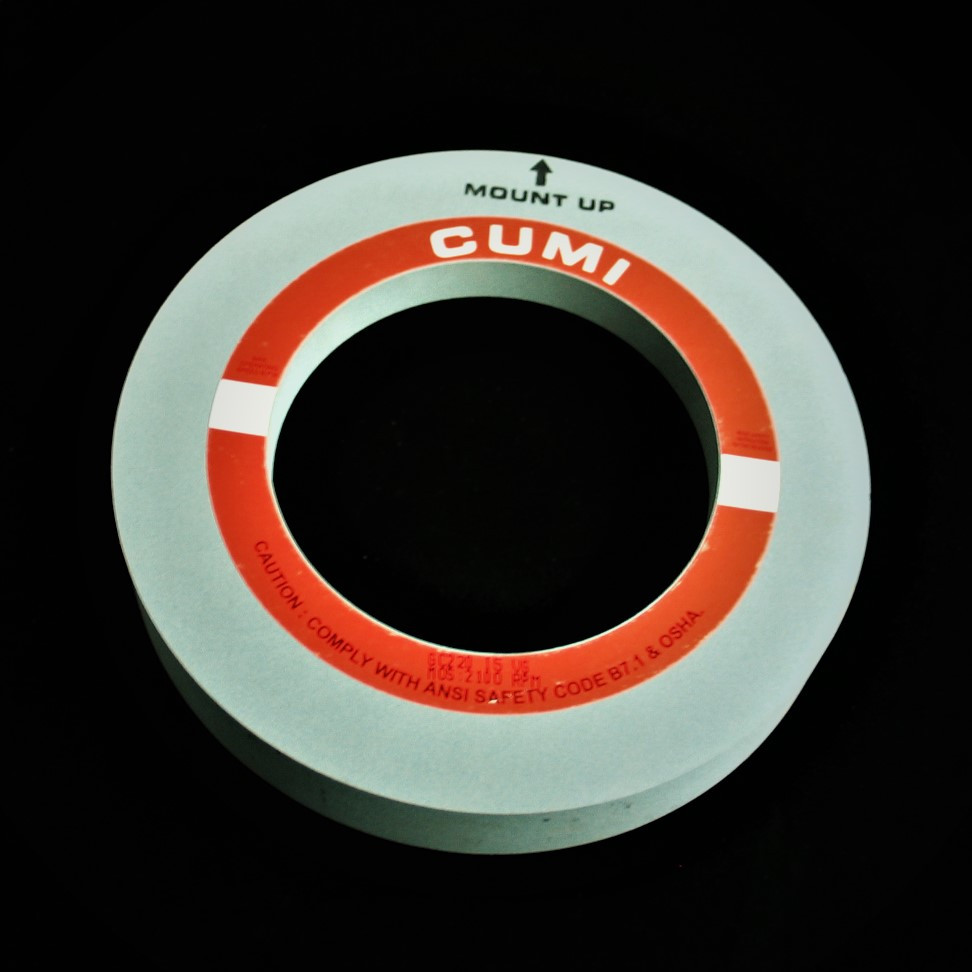

Library photograph used for illustration purposes.
