Grinding Wheel - 250 x 32 x 31.75 WA 60LV (GW1108)

SPECIFICATIONS

250 x 32 x 31.75mm (10" x 1¼" x 1¼") (Diameter x Width x Bore) Type 1 Straight.

MATERIAL COMPOSITION

WA 60LV - white aluminium oxide.

BRAND

'WEILER' (SWATY)

SAFETY

Speed (MAX) 40m/s, 3100 RPM. Complies with OSA EN12413 safety standards for professional grinding wheel applications.

COUNTRY OF ORIGIN

Slovenia – Industrial quality grinding wheel suitable for workshop and manufacturing environments.

TYPICAL APPLICATIONS

Surface, bench, pedestal grinding etc.

VERSATILITY

Premium quality white fused aluminium oxide. The grain structure is made up of several crystals that break down along the shear planes as the grinding pressure increases - this gives friability which aids higher performance with less dressing. Giving a longer wheel life and lower cycle time.

Recommended for grinding hard & heat sensitive steels & alloys. For grinding & sharpening high-speed steel (HSS), tool steels, die steels, cast alloy tools & cutters etc.

SURFACE FINISH µ (Ra & CLA)

Is dependent on grit size. GRIT SIZE SELECTION GUIDE (guide table attached).

Bore reducing bushes available free of charge - please ADD NOTE at checkout - specify which bush size you require.

WHEEL MODIFICATION service available. Stocked wheels can be modified at your request.

Please contact the office on: +44 (0)121 687 1135

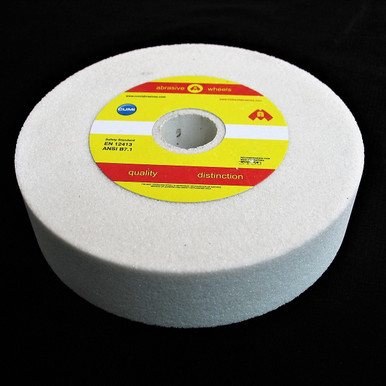

Library photograph used for illustration purposes.
