- Grinding Wheel - 200 x 6 x 31.75 WA 100KV (GW1717)
Grinding Wheel - 200 x 6 x 31.75 WA 100KV (GW1717)
Product Description
|
SPECIFICATIONS 200 x 6 x 31.75mm (8" x ¼" x 1¼") (Diameter x Width x Bore) Type 1 Straight. MATERIAL COMPOSITION WA 100KV - white aluminium oxide - Fine grit. BRAND 'MA' SAFETY Speed (MAX) 35m/s, 3350 RPM. Complies with EN12413 ANSI B7.1 safety standards for professional grinding wheel applications. COUNTRY OF ORIGIN India – Industrial quality grinding wheel suitable for workshop and manufacturing environments. TYPICAL APPLICATIONS Surface & profile grinding etc. Point thinning wheel for Dormer & SKF Models 48 & 55 - Part No. 4806216/K VERSATILITY Premium quality white fused aluminium oxide. The grain structure is made up of several crystals that break down along the shear planes as the grinding pressure increases - this gives friability which aids higher performance with less dressing. Giving a longer wheel life and lower cycle time. Recommended for grinding hard & heat sensitive steels & alloys. For grinding & sharpening high-speed steel (HSS), tool steels, die steels, cast alloy tools & cutters etc.
SURFACE FINISH µ (Ra & CLA) Is dependent on grit size. GRIT SIZE SELECTION GUIDE (guide table attached).

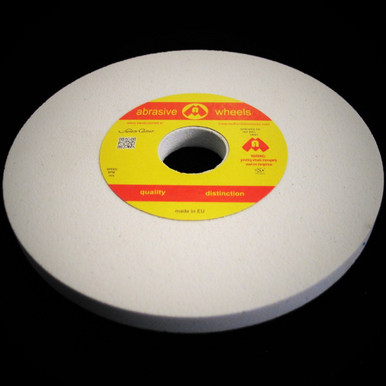

Bore reducing bushes available free of charge - please ADD NOTE at checkout - specify which bush size you require. WHEEL MODIFICATION service available. Stocked wheels can be modified at your request. Please contact the office on: +44 (0)121 687 1135 Library photograph used for illustration purposes. |
