Grinding Wheel - 100 x 6 x 19.05 MA 100IV1 (GW745) CONSORT

SPECIFICATIONS

100 x 6 x 19.05mm (Diameter x Width x Bore) Type 1 Straight.

MATERIAL COMPOSITION

MA 100IV1 –  19A Mix blue/white aluminium oxide abrasive.

BRAND

‘CONSORT'

SAFETY

Speed (MAX) 35m/s, 6680 RPM. Complies with OSA 12413 safety standards for professional grinding wheel applications.

SURFACE FINISH µ (Ra & CLA)

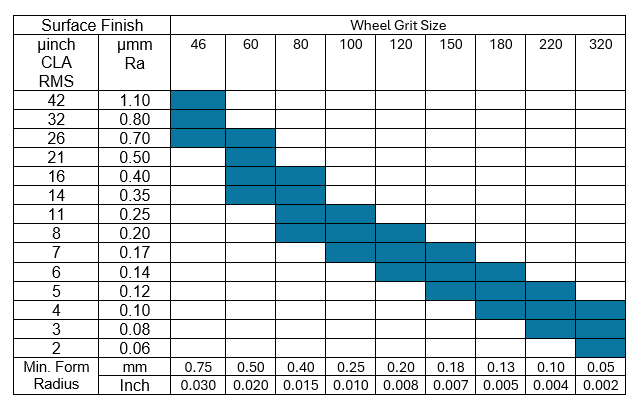

Dependent on grit size. SEE CHART (illustration attached).

COUNTRY OF ORIGIN

UK – Industrial quality grinding wheel suitable for workshop and manufacturing environments.

TYPICAL APPLICATIONS

Surface, tool post, tool & cutter grinding etc.

VERSATILITY

Characteristically cool cutting & burn free – general purpose for grinding variety of materials.

BORE reducing bushes available FOC - please ADD NOTE at checkout - specify which bush size you require.

WHEEL MODIFICATION service available. Stocked wheels can be modified at your request.

Please contact the office on: +44 (0)121 687 1135

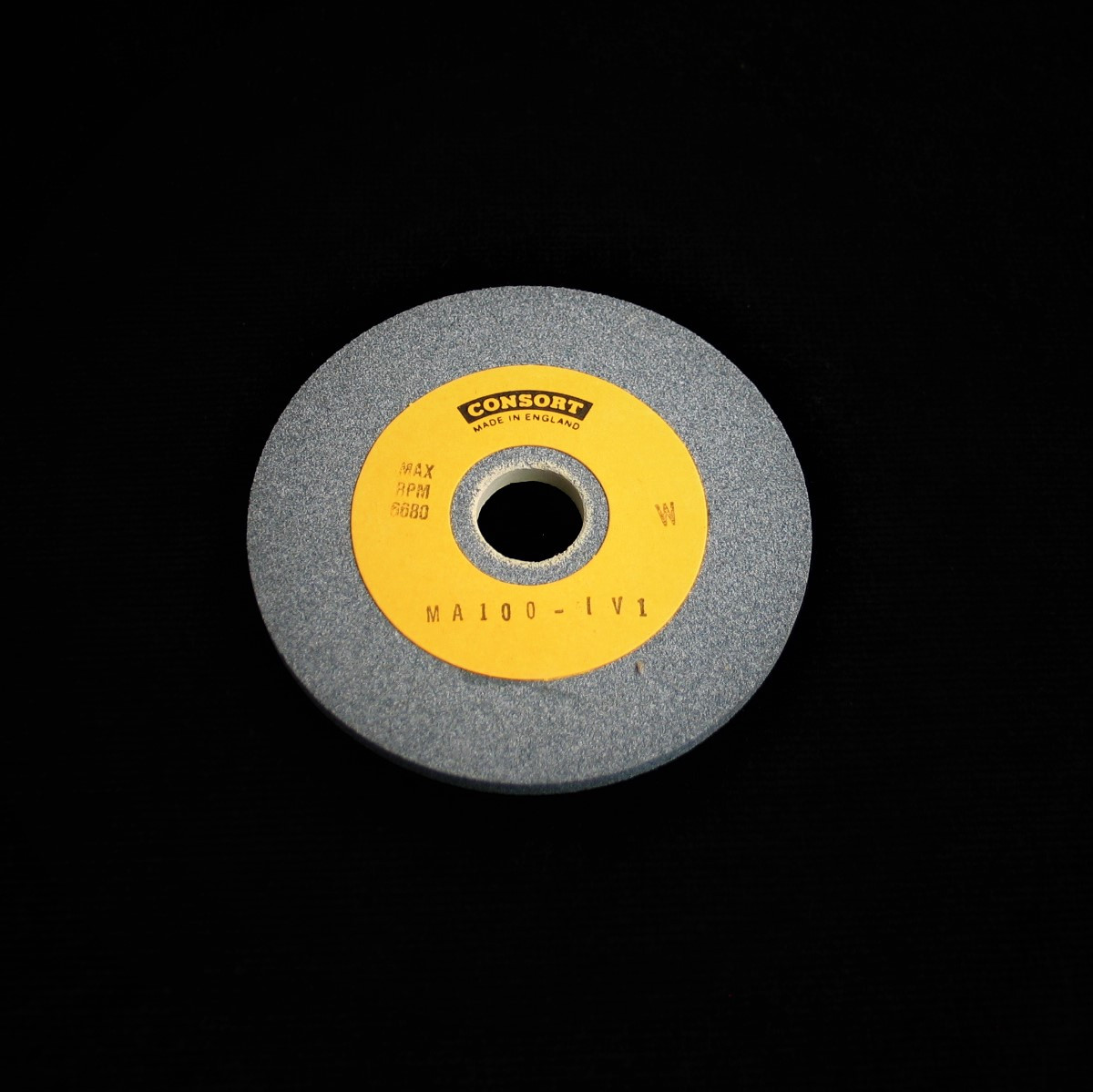

Library photograph used for illustration purposes.
